NOVICK® der am schnellsten wachsende Hersteller von Erodiermaschinen.
Qualitätsprodukte mit vernünftigen Preisen werden zunehmend von Käufern aus aller Welt begrüßt. NOVICK hat in den letzten Jahren Durchbrüche in Technologie und Maschinenqualität erzielt. Eine strenge Qualitätskontrolle wird während des gesamten Fertigungsprozesses von der Lagerung, Bearbeitung, Montage bis zur Qualitätskontrolle sorgfältig durchgeführt. Darüber hinaus wurde bei jedem Schritt während des Herstellungsprozesses größtes Augenmerk auf jedes Detail gelegt. NOVICK EDMs wurden in über 40 Länder der Welt verkauft, und auch die Exporte in Industrieländer wie Europa und Amerika steigen allmählich. Mit dem Ziel, Exzellenz zu präsentieren, führen wir ständig eine detaillierte Problemanalyse, Schlussfolgerung und Anordnung sowie eine Anpassung der Ausführung durch.
NOVICK: quality EDM Machines at VERY attractive Prices

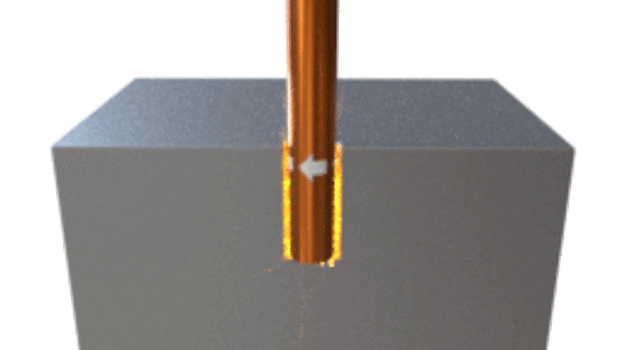

Hole drilling EDM
Hole drilling EDM uses low cost electrode tube (normally brass or copper material) to drill holes on a electrically conductive material at a very high speed, the hole depth diameter ratio can reach up to 200. The hole diameter is normally from 0.3mm to 3.0mm. Novidrill can drill holes even on a inclined surface workpiece. This technology is widely used for hole machinig in aerospace, energy, cutting tools, automotive, medical, mold and die industries.
More info on hole drilling

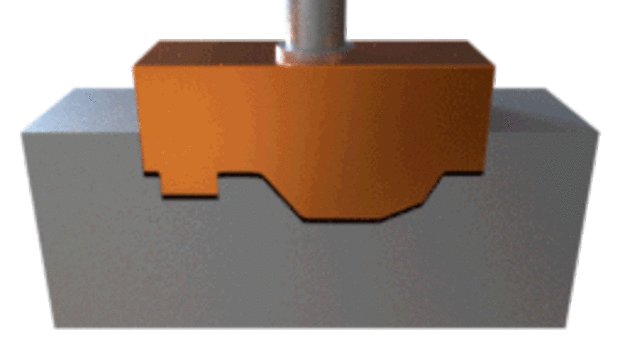

Die sinking EDM
NOVICK® is revolutionizing die-sinking EDM with features like to be the most cost effective machine on the market, and patented technology to dramatically reduce electrode wear. Most of our die-sinking systems offer fast metal removal rates and deliver mirror finishes with pulse duration as short as 50 nanoseconds. NOVICK® Sinker EDMs feature latest energy saving technology. NOVICK® Die-Sinkers offer high speed and low electrode wear. They are high accuracy machines that produce fine finishes using Spark Machining.
More info on ZNC Die sinking
More info on CNC Die sinking

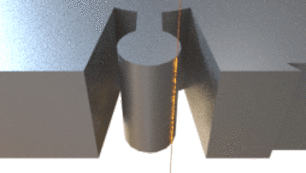

WIRE CUT EDM Machines
Use a metallic wire (electrode) to cut a programmed contour in a work piece. The wire can be inclined, thus making it possible to make parts with taper or with different profiles at the top and bottom.
Two types of EDM wire cut machines are available:
- High speed Machine with a Reciprocating Molybdenum wire. This wire cut machine is with the lowest running cost in the market and can reach the highest removal rate of more than 220 mm2/min and a best roughness of Ra = 0,8-1,0. The wire is usually made of 99.9% molybdenum, and is between 0.08 and 0.8 mm diameter and continuously re-usable.
- More info on Molybdenum wire cutting
- Precision wire cut machine with continue fed copper/Brass-based wire for higher precision and high surface quality. The wire is usually made of brass or stratified copper, and is between 0.02 and 0.3 mm diameter and for single use
- More info on normal wire cutting
NOVICK® Wire EDMs are the right choice for you if you are looking for a machine that is more accurate, precise and less costly to operate. Both types are available from NOVICK®
Novicut-M-AM3D:
Best solution for your 3D AM metal parting
We offer THE BEST Cut-off tool for 3D Metal Additive Manufacturers: affordable, high speed, reliable, efficient and super economical. Our Machine do remove fast and at a fraction of the cost of the others, easily and economically all your parts from their base-plate made by following processes :
- AM : Additive Manufacturing
- RP : Rapid Prototyping
- Power Bed Fusion
- SLS : Selective Laser Sintering
- SLM: Slective Laser Melting
- DMLS : Direct Metal Laser Sintering
- EBM : Electron Beam Melting (Laser Cusing)
- Metal Binder Jetting
BEST BASE PLATE REMOVAL TOOL: NovicutM-AM3D
More info on our Additive Manufacturing Base plate removal machine
NOVICK® Wire EDMs are the right choice for you if you are looking for a reliable and affordable machine that is more accurate, precise and less costly to operate.
Precise CNC Diamond tools EDM
Precise CNC Diamond tools EDM is a kind of EDM machine specially for grinding/cutting diamond tools (PCD & CBN tools) through erosion.
Two type of PCD EDM tool making machines are available:

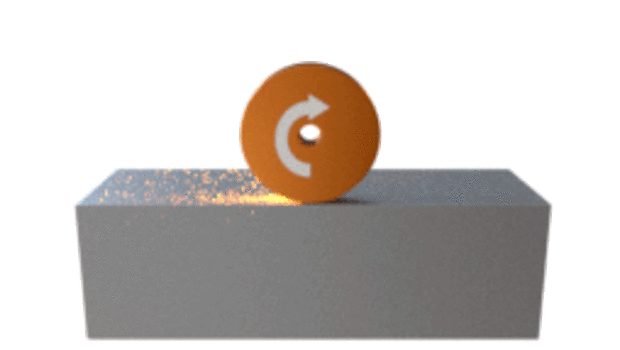

- Rotatif grinding EDM
- It can finish the whole process automatically from rough to precise grinding by controlling erosion parameters. The accuracy of work-piece can reach to the level of ± 5μm. At present, it has been widely used in the grinding and sharpening of wooden-working machinery tools.
- More info on Grinding EDM
- It can finish the whole process automatically from rough to precise grinding by controlling erosion parameters. The accuracy of work-piece can reach to the level of ± 5μm. At present, it has been widely used in the grinding and sharpening of wooden-working machinery tools.
- High speed Molybden wire cut of rotary tool
- Flexybility without limit at unbeatable price!
- More info on PCD wirecutting
- Flexybility without limit at unbeatable price!
SPECIAL MACHINE FOR ADDITIVE MANUFACTURING
We offer THE BEST Cut-off tool for 3D Metal Additive Manufacturers: affordable, high speed, reliable, efficient and super economical.
ADDITIVE MANUFACTURING -- METAL 3D PRINTING
Worlds best solution for easy, reliable and economical cutting off your workpieces from the Metal 3D printer's base plate
Novicut-M AM3D:
best solution for your 3D AM metal parting!
Our Machine do remove fast and at a fraction of the cost of the others, easily and economically all your parts from their base-plate made by following processes :
AM : Additive Manufacturing
RP : Rapid Prototyping
Power Bed Fusion
SLS : Selective Laser Sintering
SLM: Slective Laser Melting
DMLS : Direct Metal Laser Sintering
EBM : Electron Beam Melting (Laser Cusing)
Metal Binder Jetting
Go to 3D Metal Special Page
BEST BASE PLATE REMOVAL TOOL: NovicutM-AM3D
